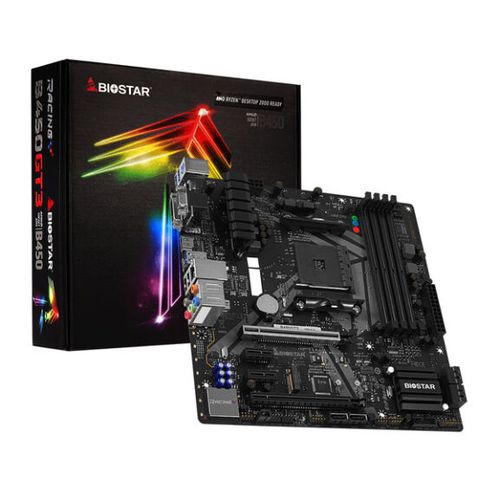

Placa Mãe Biostar Racing B450GT3, Chipset B450 | R$ 620

Marca:
Biostar

Modelo:
B450GT3

Processador:
AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 105Watt

Chipset:
AMD B450

Memória:
Support Dual Channel DDR4 1866/2133/2400/2666/2933/3200(OC) MHz
Max. Supports up to 64GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module

Slots de Expansão:
1 x PCI-E 3.0 x16 Slot
1 x PCI-E 2.0 x16 Slot(x4)
2 x PCI-E 2.0 x1 Slots

Armazenamento:
6 x SATA3 Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 Key M 32Gb/s Connector: Support PCI-E & SATA SSD
* M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & CPU is 16Gb/s.

Portas USB:
1 x USB 3.1 Gen2 Type-C Port(10Gb/s) (1 on rear I/O)
1 x USB 3.1 Gen2 Type-A Port(10Gb/s) (1 on rear I/O)
4 x USB 3.1 Gen1 Ports (5Gb/s) (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal headers)

Audio:
Realtek ALC1150 7.1-Channel Audio
Support HD Audio
Support SPDIF_out

LAN (rede):
Realtek RTL8118AS - 10/100/1000Mb/s Controller

Conectores internos:
1 x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
6 x SATA3 6Gb/s Connectors
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
2 x System Fan Connector
2 x 5050 LED Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header

Portas traseiras:
1 x PS/2 Keyboard/Mouse
1 x USB 3.1 Gen2 (10Gb/s) Type-C Port
1 x USB 3.1 Gen2 (10Gb/s) Type-A Port
2 x USB 3.1 Gen1 (5Gb/s) Ports
2 x USB 2.0 Ports
1 x HDMI Connector ,resolution up to 4096 x 2160@30Hz
1 x DVI-D Connector ,resolution up to 1920 x 1200 @60Hz
1 x VGA Port ,resolution up to 1920 x 1200 @60Hz
1 x LAN port
6 x Audio Jacks

Dimensões:
Formato Micro ATX 24.4cm x 24.4cm ( W x L )
