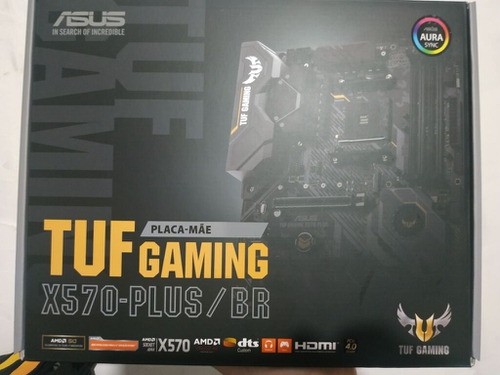

Placa Mãe Asus TUF Gaming X570-Plus, Chipset X570, AMD AM4, ATX, DDR4

Marca:
Asus

Modelo:
TUF Gaming X570-Plus/BR

Processador:
AMD AM4 Socket 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™ Processors
Clique aqui para ver a lista de process...tados

Chipset:
Processadores AMD X570

Memória:
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Slots de Expansão:
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1

Armazenamento:
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

Audio:
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Audio Feature :
Exclusive DTS Custom for GAMING Headsets.
Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

LAN (rede):
Realtek® L8200A
ASUS Turbo LAN Utility
TUF LANGuard

Conectores internos:
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Portas traseiras:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)

Dimensões:
Modelo ATX - 30.5 cm por 24.4 cm
